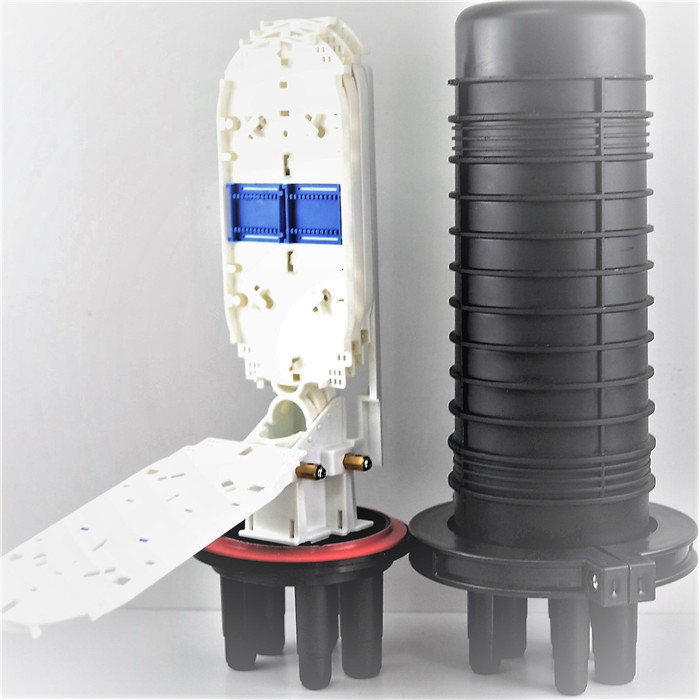

IP 68 Grade Fiber Optic Joint Closure 3 in 3 out 96 Fibers with 6 round ports

Quick Detail:

IP68 Dome type fiber optic splicing closure.6 round ports ;Max 4 trays and 96 cores;Suit for 8-20mm cables;buffer storge,6holder-tpr,Used for wall mounted,pole mounted,man hole,duct mounting and pipeline,direct buried..

Description:

1. Protection grade:IP68

2. Material:PP,ABS(new first hand raw material)

3. Number of cable ports: 6round ports

4. Maximum Trays: 4 trays

5. Maximum Cores:96(singlel core)

6. Dimension (HxD):430mm *130 mm

7. Package material:Carton

8. Weight:2.5-3.0Kg

9. Cable diameter range:8-22mm

10. Sealing way of cables:Heat shrinking

11. Quality warrenty:2 years

12. Life span:more than 25 years

13. buffer storge

Applications:

Aerial,Wall mounted,pole mounted,manhole,duct mounting,pipeline,direct buried..etc

Specifications:

Competitive Advantage:

1. Easy & fast installation with no special tools
2. Superior sealing performance(free sample for testing)
3. The closure can be repeatly used many times.
4. The cables can be fixed from 3 points,safe and reliable
5. Enough space for surplus fibers inside the closure
6. Flexible branching for fibers
7. loose leaf type of splice tray fixing,easy operation&maintain
8. Modular fiber management system

Pictures:
