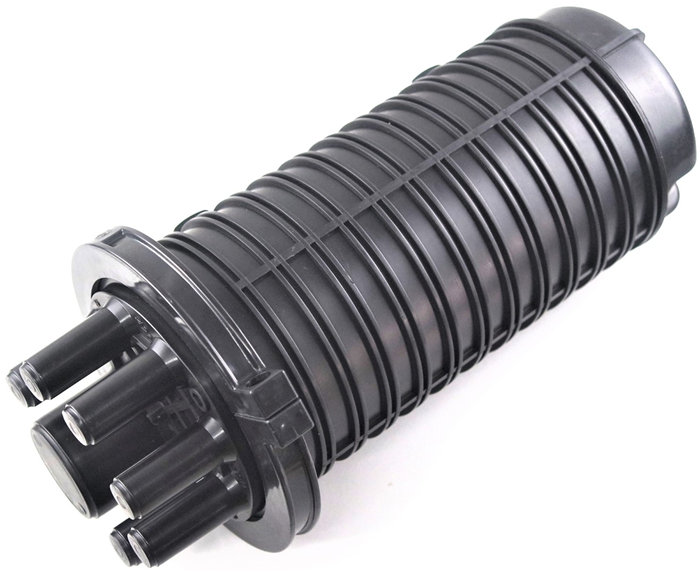

8 Trays Big 7 Ports Fiber Optic Closure For Ribbon Fiber Cable

Quick Detail:

IP68 Dome type fiber optic splice closure.1 oval port+6 round ports;Max 8 trays and 288 cores,max ribbon fiber 864 core;Suit for 8-26mm cables;Used for wall mounted,pole mounted,man hole,duct mounting and pipeline,direct buried..

Description:

1. Protection grade:IP68

2. Material:PP,ABS(new first hand raw material)

3. Number of cable ports: 1 big oval port(74x54) and 6 small round ports(26.4)

4. Maximum Trays: 8 trays

5. Maximum Cores:286(singlel core) ribbon fiber 864

6. Dimension (HxD):505mm *180 mm

7. Package material:Carton

8. Weight:4.0-4.5Kg

9. Cable diameter range:10-26mm

10. Sealing way of cables:Heat shrinking

11. Quality warrenty:2 years

12. Life span:more than 25 years

Applications:

Wall mounted,pole mounted,manhole,duct mounting,pipeline,direct buried..

Specifications:

Competitive Advantage:

1. Easy & fast installation with no special tools,suit for uncut cables
2. Superior sealing performance(free sample for testing)
3. The closure can be repeatly used many times.
4. The cables can be fixed via 3 points,safe and reliable
5. Big capacity.Enough space for surplus fibers inside the closure
6. Flexible branching for fibers
7. loose leaf type of splice tray fixing,easy operation&maintain
8. Modular fiber management system
