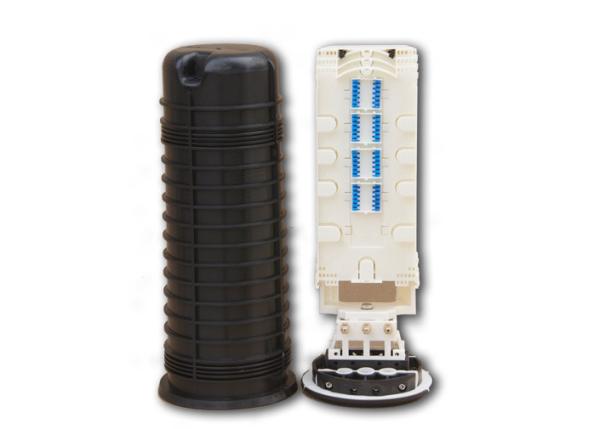

180 core IP68 Fiber Optic Splice Box Vertical Wall mounted with 3 trays

Quick Detail:

Vertical type mechanical sealing fiber optic splice closure.6 fiber cable entry ports ,max for 6 cables inlets and outlets;Max 3 trays and 180 cores(bunch)&432cores(ribbon);Suit for 8-20mm cables;Used for wall mounting,pole mounting,man hole,duct mounting , pipeline,direct buried..

Description:

1. Protection grade:IP68

2. Material:PP,ABS(new first hand raw material)

3. Number of cable ports: 6

4. Maximum Trays: 3 trays

5. Maximum Cores:180(bunch) ,432(ribbon)

6. Dimension (HxD):540mm *150 mm

7. Package material:Carton

8. Weight:3.5-4.0Kg

9. Cable diameter range:8-16mm

10. Sealing way of cables:Mechanical sealing

11. Quality warrenty:2 years

12. Life span:more than 25 years

Applications:

Wall mounted,pole mounted,manhole,duct mounting,pipeline,direct buried..

Specifications:

Competitive Advantage:

1. Mechanical seaing,easy & fast installation with no special tools,suit for uncut cables
2. Superior sealing performance(free sample for testing)
3. The closure can be repeatly used many times.
4. The cables can be fixed via 3 points,safe and reliable
5. Enough space for surplus fibers inside the closure
6. Flexible branching for fibers
7. loose leaf type of splice tray fixing,easy operation&maintain
8. Modular fiber management system

Guangdong Gaoxin Communication Equipment Industrial co, Ltd

Guangdong Gaoxin Communication Equipment Industrial co, Ltd was founded in 1999 in Guangzhou China, being one of the most Industrial provinces in the Peoples Republic of China. We are a professional manufacturer of all kinds of Fiber Optic Splice Closures ,Fiber Termination Box ,and other relative auxiliary telecommunication equipments. We hold the concepts of customer-first and quality-first as our philosophy. We understand deeply that quality is the backbone of any enterprise. More than 100 customers have established long term business relations with us These are mainly from diverse Countries which include; North America, Russia, West Europe, South America, Southeast Asia, Middle-east and Africa and counting.

We have more than 20 experienced experts engineers with a total experience spanning over 30 years in telecommunications industry. These engineers have acquired the necessary industry qualifications to make World-class products without any faults. We have provided a considerable number of telecommunications products and excellent backup services since our inception to the satisfaction of all our clients. Our high-quality products, reasonable prices and excellent services have created value for our customers and have been recognized by all our clients who repeatedly buy from us. In 2007, we passed ISO9001 quality system certification.

Guangdong Gaoxin takes the sense community as a very important part of its mandate. We, therefore, have the responsibility to supply the best products and technology to our customers, to allow for ease of communication in an affordable way
